IGV

The IGV range of inert gas vents are designed specifically for over-pressure venting associated with Inert gas high pressure Fire Suppression Systems.
The vents can also provide protection against under-pressure venting with Synthetic gases as they have the unique feature of having reversible flanges which allow installers to alter the flow configuration on site and keep the units housed within the wall and avoiding protrusions from the wall.

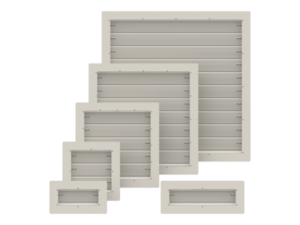

The Vents are offered in a number of standard sizes for installation in both internal and external walls with the availability of bespoke sizes in 100mm increments. Providing market leading performance across a range of pressures which has been validated by BSRIA under laboratory conditions to recognised standards. The vents are designed to remain closed below opening 70Pa to allow room integrity testing to be carried out with ease. The units are also fully open at 100Pa giving you the best possible protection for your building.

The IGV has been successfully tested at EXOVA Warrington Fire following the performance test criteria of BS EN 1364-1, achieving 4 hours fire resistance.

The IGV is the first Inert Gas Pressure Relief Vent in the world that has been certified to EWCL5.

Vent Model 0303 and upwards fits into an internal wall thickness of 125 to 205mm with external walls 200 to 220mm.
Models 0501 & 0301 external and internal wall depths are 125mm to 205mm.

Deeper walls can be accommodated with the use of our easy fit wall liner extension sleeves. For doors and thin walls the use of our C-frame Kit can be utilised.
